# 🔍Retrivers

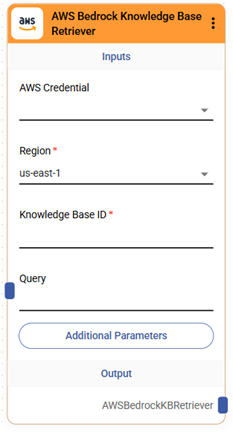

#### **1)AWS Bedrock Knowledge Base Retriever**

Purpose: Retrieves relevant documents or chunks from a Knowledge Base created and managed in Amazon Bedrock.

**How It Works:**

* Uses the Bedrock service's native vector store and retrieval tools.
* Typically paired with a Bedrock-supported embedding model (like Titan or Cohere).

**Use Case:** Enterprise RAG applications hosted entirely on AWS infrastructure for scalability and security.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FZpMQiGTAEMYbSfowUDM1%2Fimage.png?alt=media&#x26;token=0c2baf42-ebbf-4de9-946a-e6662cff38c5" alt="" width="175"><figcaption></figcaption></figure>

#### &#x32;**)Custom Retriever**

Purpose: Allows you to define your own logic for retrieving documents from a vector database or custom source.

**How It Works:**

* You can implement custom search logic (e.g., specific filters, hybrid retrieval, advanced ranking).
* Often used when built-in retrievers (like Pinecone or Qdrant) don't meet specific needs.

**Use Case:** When you need fine-grained control over how data is retrieved—e.g., combining metadata filtering, hybrid ranking, or integrating proprietary databases.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FM3iefFTDrYJT4LjtczgD%2Fimage.png?alt=media&#x26;token=90180e84-8a7d-4f7d-8afd-bd2959ebdc7f" alt="" width="235"><figcaption></figcaption></figure>

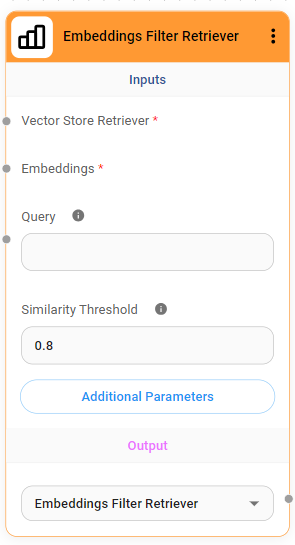

#### 3)Embeddings Filter Retriever

A document compressor that uses embeddings to drop documents unrelated to the query.

Purpose: Allows filtering of retrieved documents based on embedding similarity threshold from a vector store.

**How it Works:**

• Uses embeddings to compare query similarity with stored documents.\
• Applies a similarity threshold to filter out less relevant results.\
• Returns only documents that meet the defined similarity score.

**Use Cases:**

• Improving search accuracy by removing low-relevance results.\
• Fine-tuning retrieval quality in RAG systems.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FgSDlagj8T61SQ1mqRq3h%2FScreenshot%202024-07-09%20105437.png?alt=media&#x26;token=f30fc874-af1e-444c-8b37-209c28331ca0" alt=""><figcaption></figcaption></figure>

#### 4)HyDE Retriever

Use HyDE retriever to retrieve from a vector store.

Purpose: Enhances retrieval by generating a hypothetical document using an LLM before performing the search.

**How it Works:**

• Takes the user query and generates a hypothetical answer using a language model.\
• Converts this generated text into embeddings.\
• Uses these embeddings to retrieve more relevant documents from the vector store.

**Use Cases:**

• Improving retrieval for vague or short queries.\
• Boosting performance in semantic search and RAG pipelines.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FN63p3FLud1XKftyxq79E%2FScreenshot%202024-07-09%20105448.png?alt=media&#x26;token=8cc29cae-c10d-421c-bb7d-881141da752d" alt=""><figcaption></figcaption></figure>

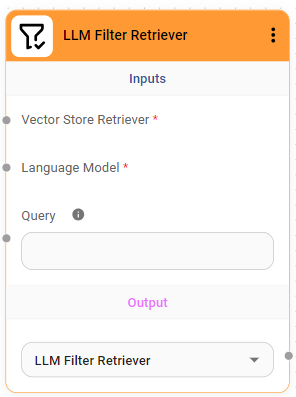

#### 5)LLM Filter Retriever

Iterate over the initially returned documents and extract, from each, only the content that is relevant to the query.

Purpose: Filters retrieved documents using a language model to ensure only relevant results are returned.

**How it Works:**

• Retrieves documents from a vector store.\
• Uses an LLM to evaluate and filter the results.\
• Keeps only documents that are contextually relevant to the query.

**Use Cases:**

• Removing irrelevant or noisy results.\
• Improving answer quality in AI applications.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FORZ5Fg8Y1QLdLszW8NAI%2FScreenshot%202024-07-09%20105501.png?alt=media&#x26;token=c12247f0-c602-4794-a268-4da4e3230644" alt=""><figcaption></figcaption></figure>

#### 6) Multi Query Retriever

Purpose: Improves retrieval by generating multiple variations of a query to fetch more comprehensive results.

**How it Works:**

• Uses an LLM to generate multiple query variations from a single input.\
• Executes each query against the vector store.\
• Combines results to provide a broader and more accurate context.

**Use Cases:**

• Handling ambiguous or complex queries.\
• Increasing recall in retrieval-based systems.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FuWptD1Lt5ijdeOYvo7Xr%2Fimage.png?alt=media&#x26;token=6ee2847e-6908-4819-ba4d-59556b506e12" alt=""><figcaption></figcaption></figure>

#### 7)Prompt Retriever

Store prompt template with name & description to be later queried by MultiPromptChain.

Purpose: Retrieves predefined prompts to guide the model in generating structured and domain-specific responses.

**How it Works:**

• Uses stored prompt templates based on a given prompt name.\
• Applies system message and description to guide the model.\
• Provides structured instructions for consistent output generation.

**Use Cases:**

• Domain-specific assistants (e.g., physics, medical, legal).\
• Reusing predefined prompts across workflows.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FOhSfsitpqwfmlLsdXBAn%2FScreenshot%202024-07-09%20105514.png?alt=media&#x26;token=84660205-e232-4ee1-99b2-05228839cfef" alt=""><figcaption></figcaption></figure>

#### 8)Reciprocal Rank Fusion Retriever

Reciprocal Rank Fusion to re-rank search results by multiple query generation.

Purpose: Combines results from multiple retrieval methods to improve overall ranking and relevance.

**How it Works:**

• Retrieves results using a vector store retriever.\
• Uses multiple ranking strategies.\
• Applies Reciprocal Rank Fusion (RRF) to merge and re-rank results.\
• Returns the most relevant combined results.

**Use Cases:**

• Improving retrieval accuracy.\
• Combining multiple retrieval strategies.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FvkFxHuffzO2I54dveXMG%2FScreenshot%202024-07-09%20105530.png?alt=media&#x26;token=b8a27384-2de9-4256-b4f6-2c5a04afbede" alt=""><figcaption></figcaption></figure>

&#x20;

#### **9)Similarity Score Threshold Retriever**

Return results based on the minimum similarity percentage.

Purpose: Filters retrieved documents based on a minimum similarity score to ensure only relevant results are returned.

**How it Works:**

• Performs similarity search on a vector store.\
• Calculates similarity scores for retrieved documents.\
• Filters out results below the defined threshold.\
• Returns only high-relevance documents.

**Use Cases:**

• Removing low-quality or irrelevant results.\
• Fine-tuning retrieval precision in RAG systems.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FrXzOLQJzedaptc5bJDFr%2FScreenshot%202024-07-09%20105542.png?alt=media&#x26;token=4de40982-48f7-4c1f-bef8-2d0cb1856c14" alt=""><figcaption></figcaption></figure>

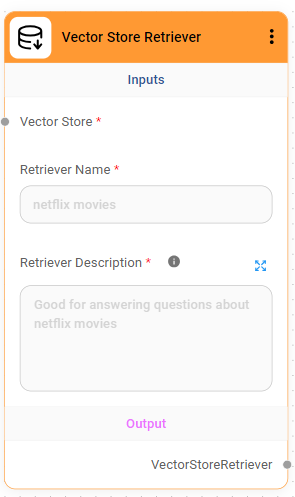

#### 10)Vector Store Retriever

Store vector store as retriever to be later queried by Multi Retrieval QA Chain.

Purpose: Retrieves relevant documents directly from a vector store based on similarity search.

**How it Works:**

• Takes a query and converts it into embeddings.\
• Searches the vector store for similar embeddings.\
• Retrieves the most relevant documents.\
• Uses retriever name and description for identification.

**Use Cases:**

• Basic semantic search.\
• Retrieving documents for RAG pipelines.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FCJdiMv3y7s7HhgEJeCOY%2FScreenshot%202024-07-09%20105552.png?alt=media&#x26;token=38ad2b4f-fbfc-4a4c-8715-12c86b1ab6d7" alt=""><figcaption></figcaption></figure>

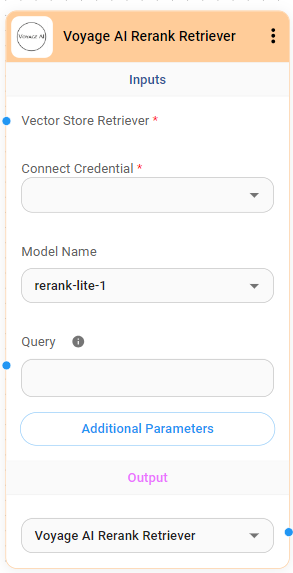

#### 11)Voyage AI Rerank Retriever

Voyage AI Rerank indexes the documents from most to least semantically relevant to the query.

Purpose: Improves retrieval quality by re-ranking documents using Voyage AI models.

**How it Works:**

• Retrieves initial results from a vector store.\
• Sends results along with the query to Voyage AI rerank model.\
• Reorders documents based on relevance.\
• Returns the most relevant ranked results.

**Use Cases:**

• Improving search result accuracy.\
• Enhancing ranking in retrieval pipelines.

<figure><img src="https://1720595571-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FxWXmt1Z68dgle5JORrEw%2Fuploads%2FYckARqyEhP9AAS7r8I33%2FScreenshot%202024-07-09%20105603.png?alt=media&#x26;token=a8f1408f-af63-4ff2-ade6-894872e3d0cb" alt=""><figcaption></figcaption></figure>
